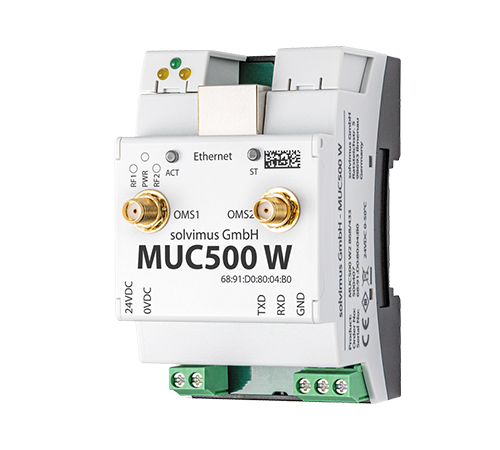

MUC500 W1/W2- Wireless Mbus concentrator

The powerful data logger for huge installations for wM-Bus meter data

Metering interfaces are up to two independent wM-Bus (OMS) channels, Modbus TCP and one RS-232 interface for connecting an external M-Bus level converter.

The MUC500 W communicates via Ethernet.

• wM-Bus receiver: usage of one of the frequency bands and modes
• Second wM-Bus receiver (for model W2): usage of an additional frequency band and mode or extension of the reception range by second antenna
• Frequencies: 868 MHz, 433 MHz und 169 MHz
• Modes: S-, T, C resp. C/T
• Simple configuration via integrated web server using a standard web browser
• Easy setup and selection of data points thanks to automatic bus scan (with external level converter)
• 4 GB storage
• Encrypted or unencrypted data transmission via FTP, MQTT, SMTP (e-mail) and TCP generates a CSV, XML or JSON file to an energy management system, billing system or for visualization purposes
• Multi-Channel-Reporting (MCR): data transmission to up to 10 different instances
• Optionally available with Modbus TCP or BACnet/IP extension
